Ultra Strength
Moderate Strength
And with Choice of
1260°C (2300°F)
Available in the Temperature Grade of

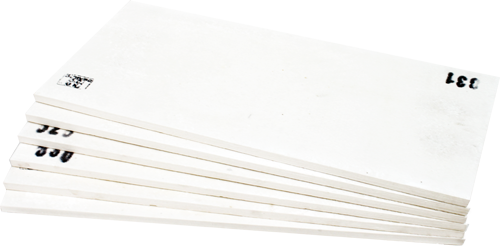

Simvac Speciality Boards

Simvac Speciality Boards are manufactured for special applications where properties such as high compressive strength and modulus of rupture with good resistance to corrosion to high velocity gas flow is required in comparison to other ceramic fiber boards. This boards are made from mixture of refractory ceramic fibers, speciality minerals and binders which have low organic content, the mixture is vacuum processed into boards that imparts good mechanical strength even after heating.

Simvac MS Boards are having Moderate Strength and modulus of rupture compare to Simvac US Boards which is having Ultra Strength. Both finds usage in variety of application on the basis of the properties required.

Simvac Shapes are the customized shapes such as sleeves, cones, etc. manufactured by vacuum forming of mixture of refractory fibers and binders having low organic content.

Characteristics

  • Resist to hot gas erosion
  • Low shrinkage value
  • Moderate to High strength and density
  • Low thermal conductivity
  • Low heating time and cooling time
  • Resist to thermal shock
  • Unaffected, even when directly in contact with the flow of Al and other Non-ferrous metals.

Applications

  • Hot face lining of kiln
  • Back up insulation of bricks and castable lining
  • Back up lining of ladle cover
  • Furnace door insulation
  • Damper sheet

Available Product Range and Packing Details

Type

 Grade (°C)

Size (T x W x L)

mm

Density (kg/m3) Packing
Simvac MS 1260 25 x 500 x 1000 415-500 6 pcs/Box Packing
Simvac US 720 min.
